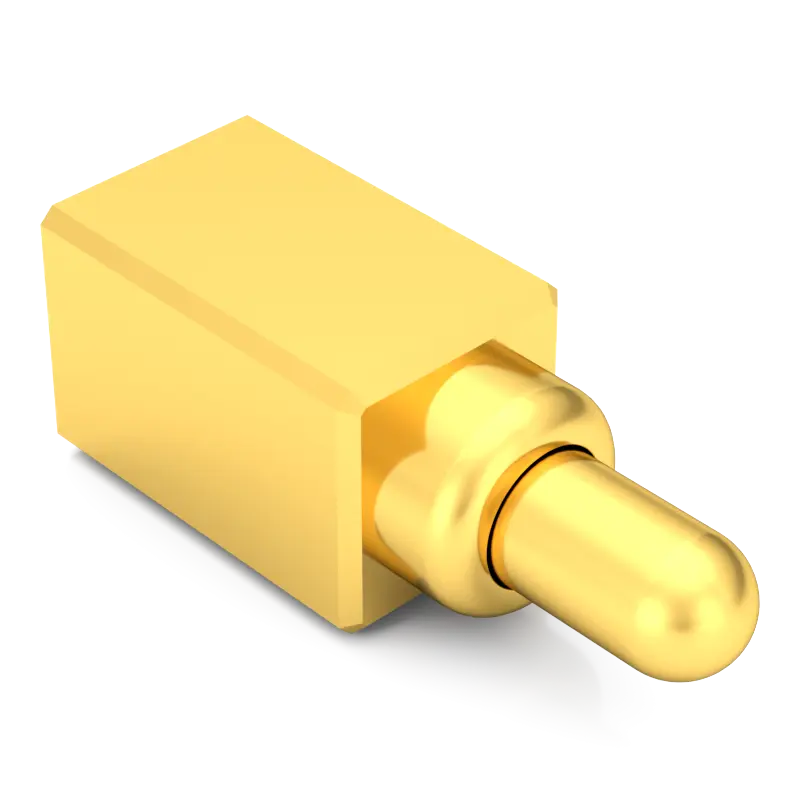

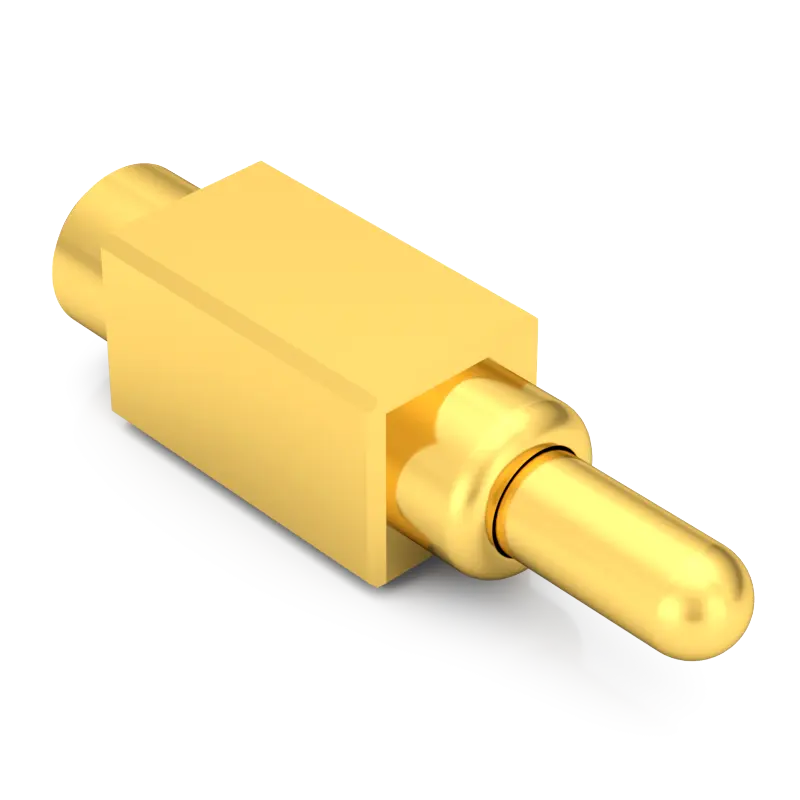

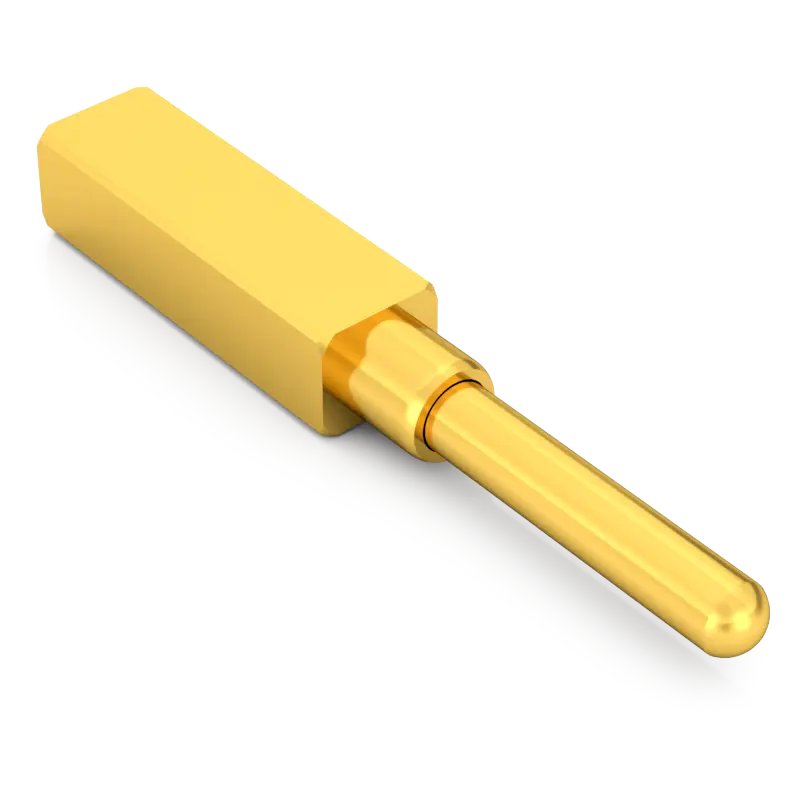

Side Contact Pogo Pin

  • Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance

  • Installation method: SMT surface mount (SMD) reflow soldering

  • Contact Resistance: 30 milliohms Max.

  • Rated Current: 2A-30A (Continuous Current)

  • Rated Voltage: 36V AC/DC

  • Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)

  • Operating Temperature: -40°C to +120°C (Continuous Temperature)

  • Salt Spray Resistance 96 Hours Corrosion Test

  • High-Precision Mold And Parts Processing

  • A variety of standards are available, and samples will be sent out as soon as the same day.

  • Provide Customized Services

  • Comply With EU RoHS And Reach Standards


Product Details
Technical Parameters
Product Selection Guide

Product Details

Side Contact Pogo Pins are also called spring pins, Pogo Pin connectors, Right Angle spring-loaded Pins, and the core function of the Right Angle Pogo Pin is to connect conductive or conductive signals.


Side Contact Pogo Pins are designed with a bevel structure and built-in spring mechanism. They are mainly composed of three core components: Plunger, SolidPin, Spring and Body, and are assembled through precision molds and special equipment. The function of the bevel structure design is to ensure that when the Pogo Pins are working, the lateral force generated by the contact between the bevel and the spring is used to maintain a stable contact force between the needle and the inner wall of the needle tube, prompting the current path to mainly pass through the gold-plated needle (Plunger) and needle tube ( Body), resulting in stable and extremely low contact resistance, maintaining a stable and reliable connection even during frequent plugging and unplugging.


How to install Side Contact Pogo Pins:

SMT automatic patch reflow soldering technology: The SMT automatic patch machine automatically mounts Side Contact Pogo Pins onto the PCB circuit board with solder paste printed on it. The solder pins are accurately inserted into the PCB circuit board holes, and then the solder paste is melted through the reflow soldering process. And solidify to complete the fixed connection with the PCB pad. This process is fast, highly precise and highly automated, greatly improving production efficiency and product quality.

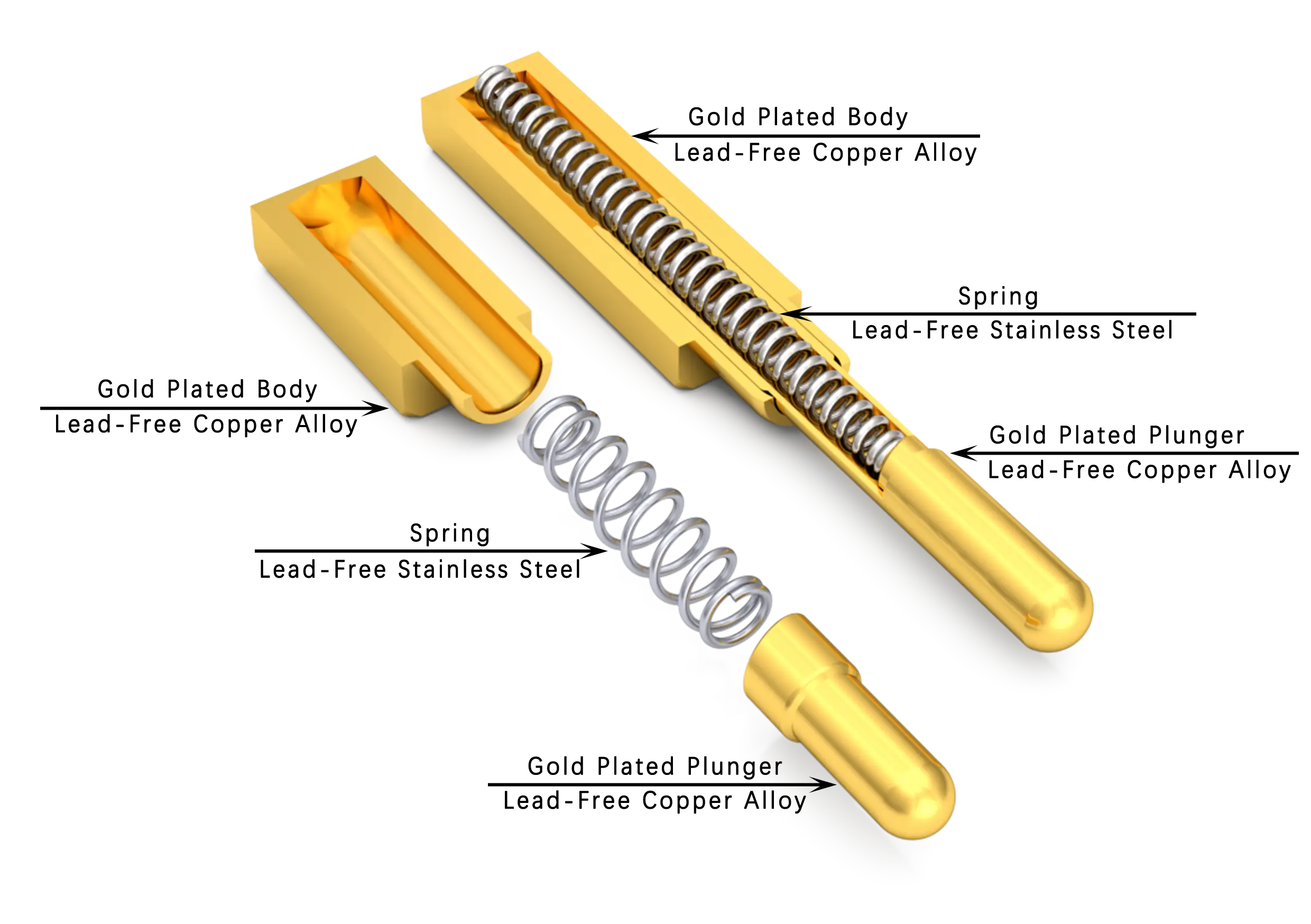

Material & Parts

Side Contact Pogo Pin is a classification of Pogo Pin connector. It is a built-in spring connector designed and manufactured based on the bevel structure. It usually consists of three core parts: Plunger, SolidPin, Spring and Body. It is characterized by side contact type. Suitable for SMT automatic patch reflow soldering, high welding strength (stronger welding with PCB circuit board), low resistance, stable and reliable connection, long life, and more durable.


side contact pogo pin material

Side Contact Pogo Pin adopts Plunger bevel structure and Plunger inner hole bevel structure. Effectively ensure that lateral force is converted into contact force to ensure stable and reliable connection.

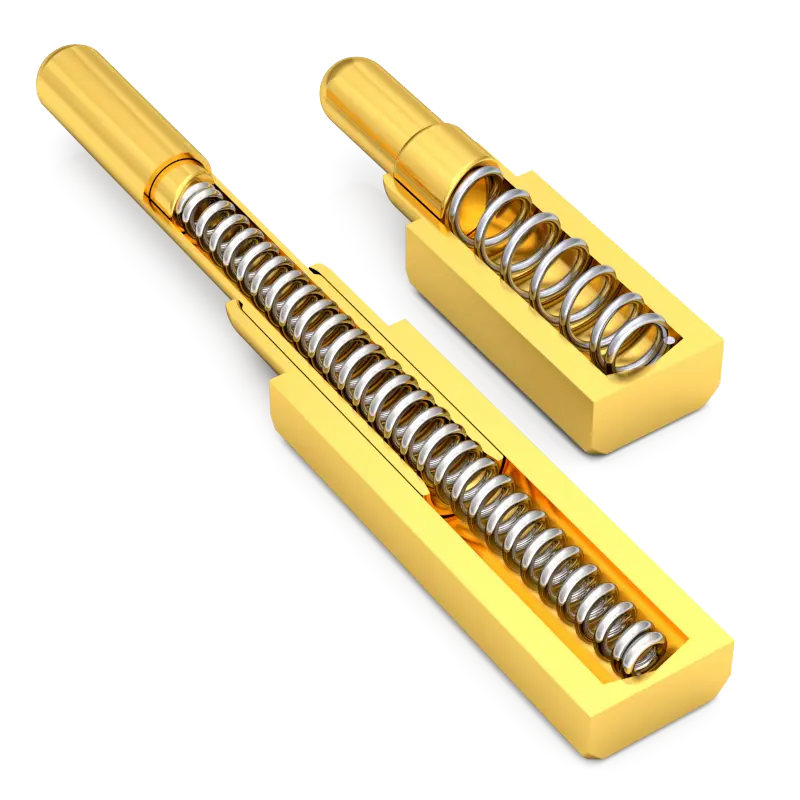

side contact pogo pin structure

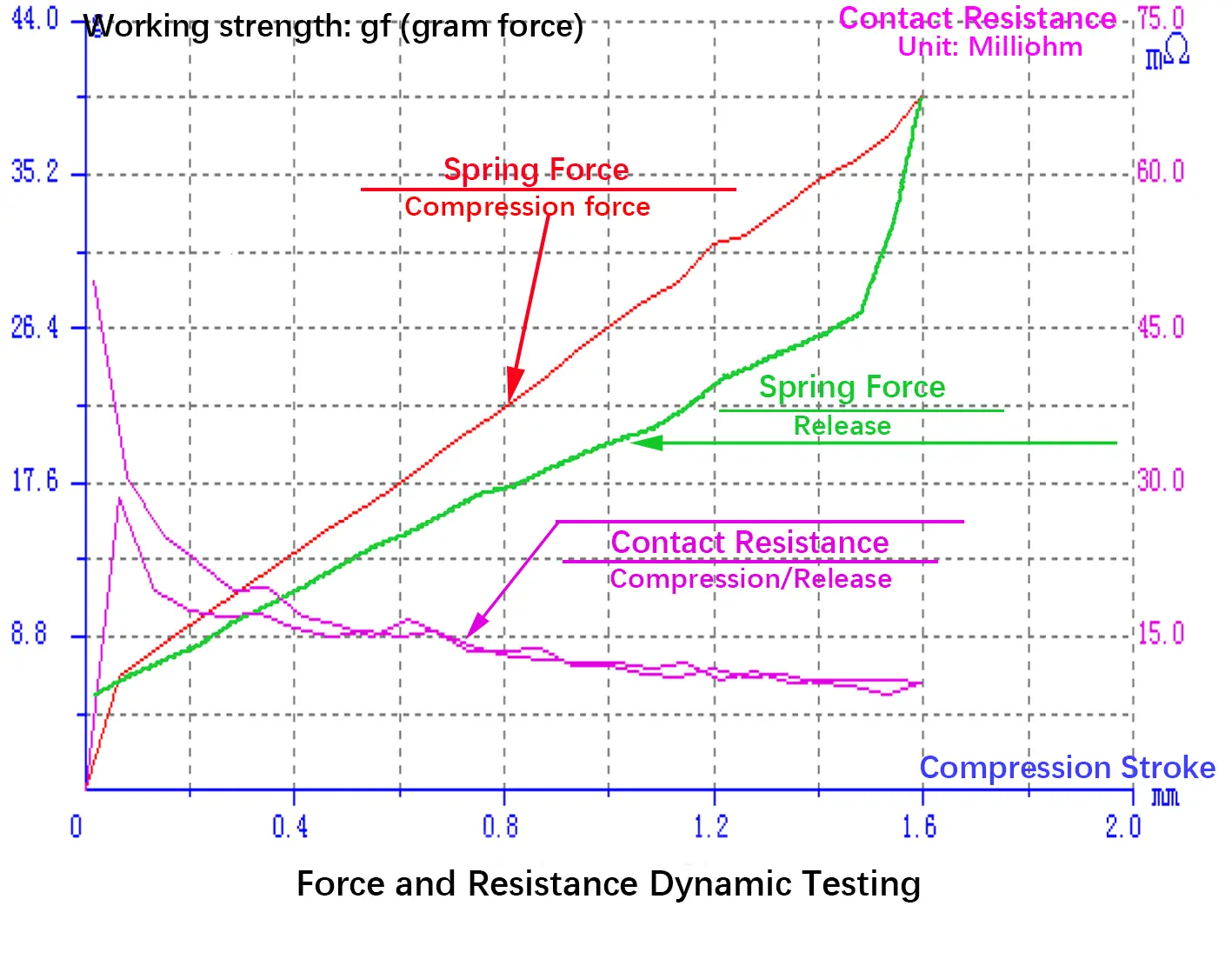

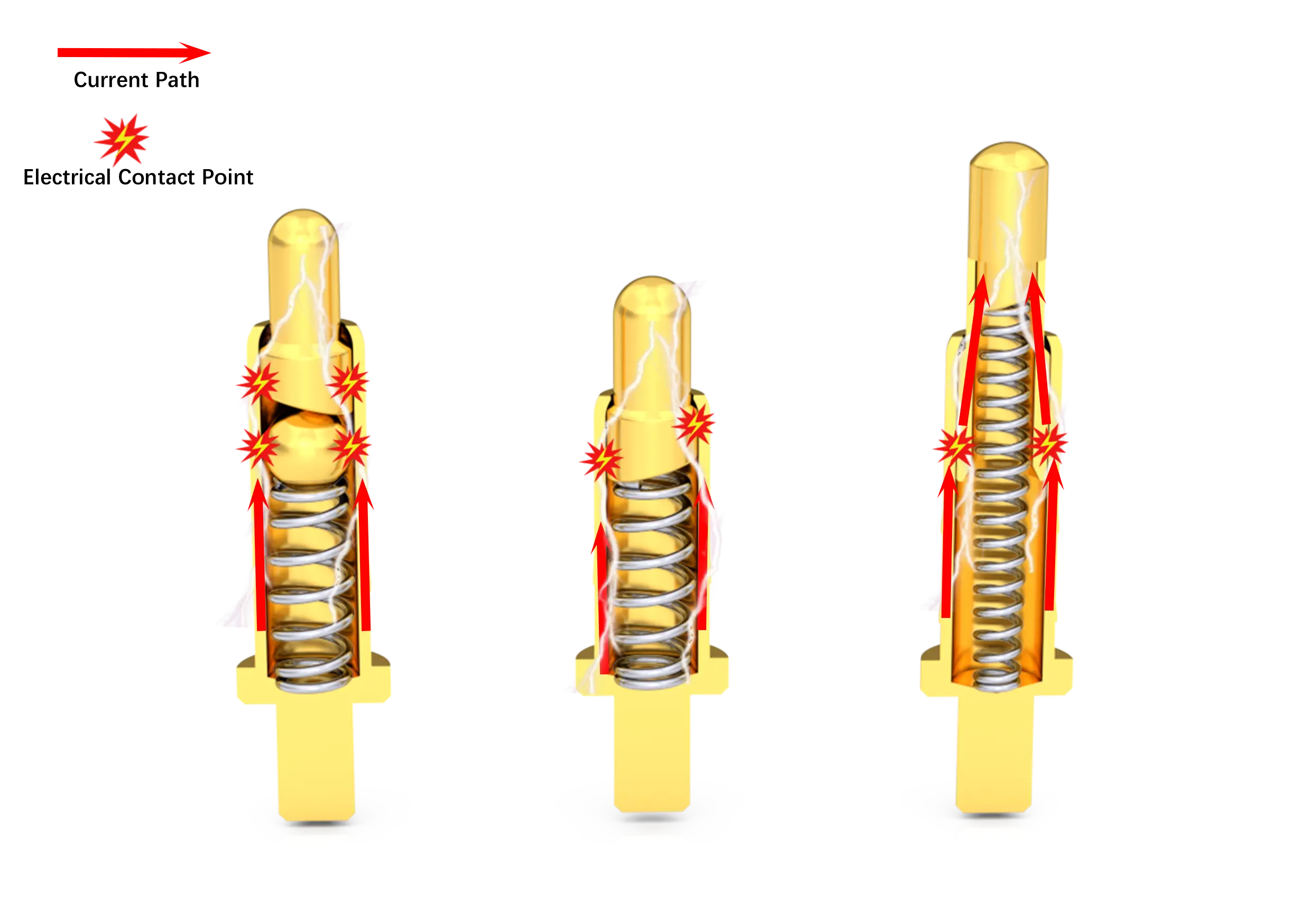

Contact force and contact resistance are the core factors for stable and reliable connections, and there is a direct relationship between contact force and contact resistance. Increasing contact force can effectively reduce contact resistance. Therefore, achieving stable contact force and contact resistance is key to establishing a reliable connection.

When the bevel and spring are working, the lateral force generated is converted into contact force, allowing the gold-plated needle to maintain stable contact with the inner wall of the needle tube, thereby obtaining stable and extremely low contact resistance, ensuring a stable and reliable connection.


side contact pogo pin roadway
Electroplated Gold-Golden Yellow

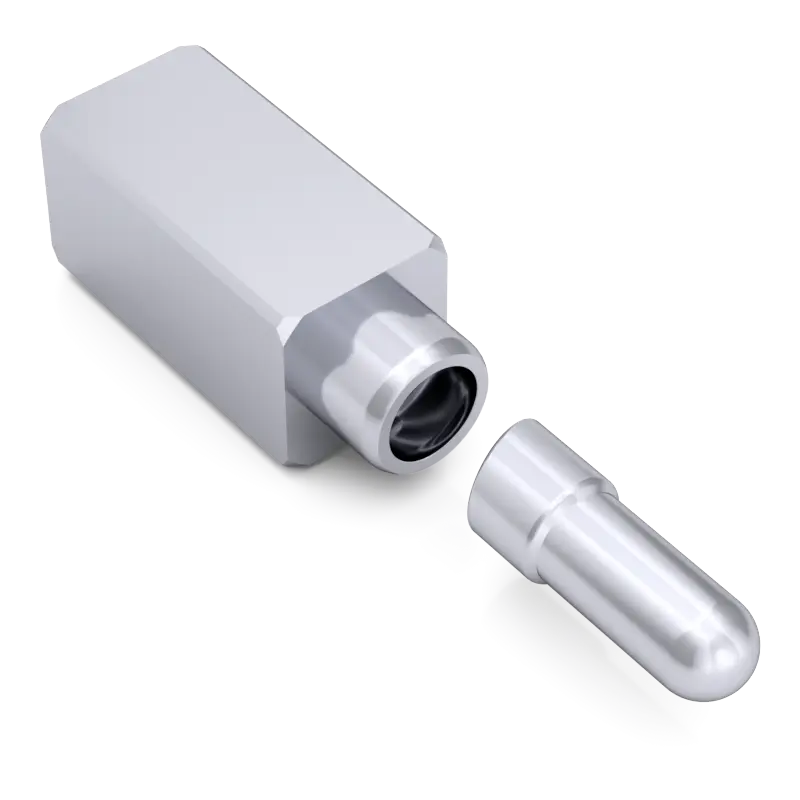

Electroplated Nickel—Silver White

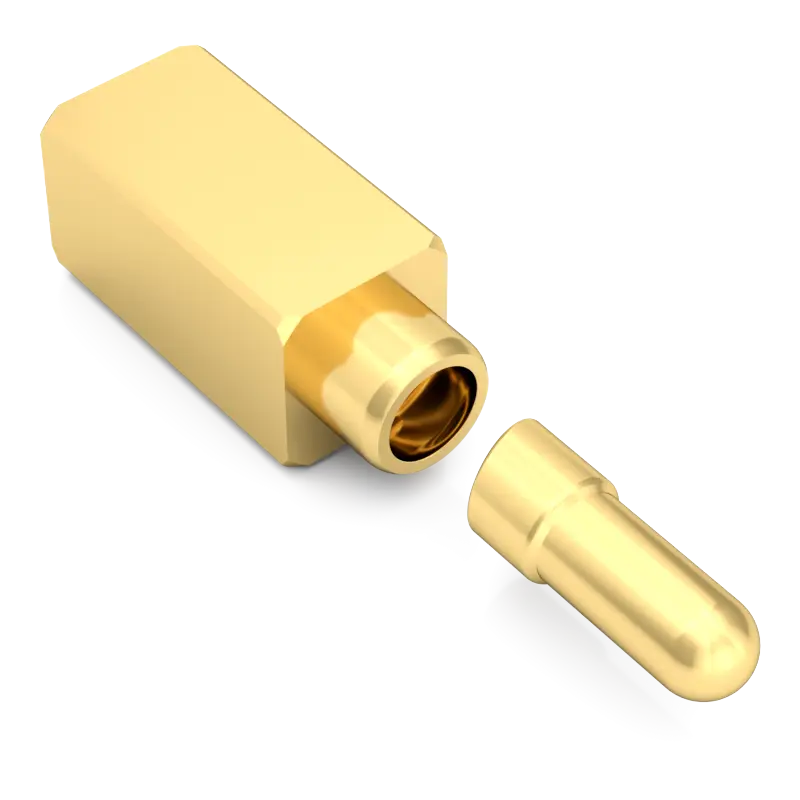

Before Electroplating - Brass Color

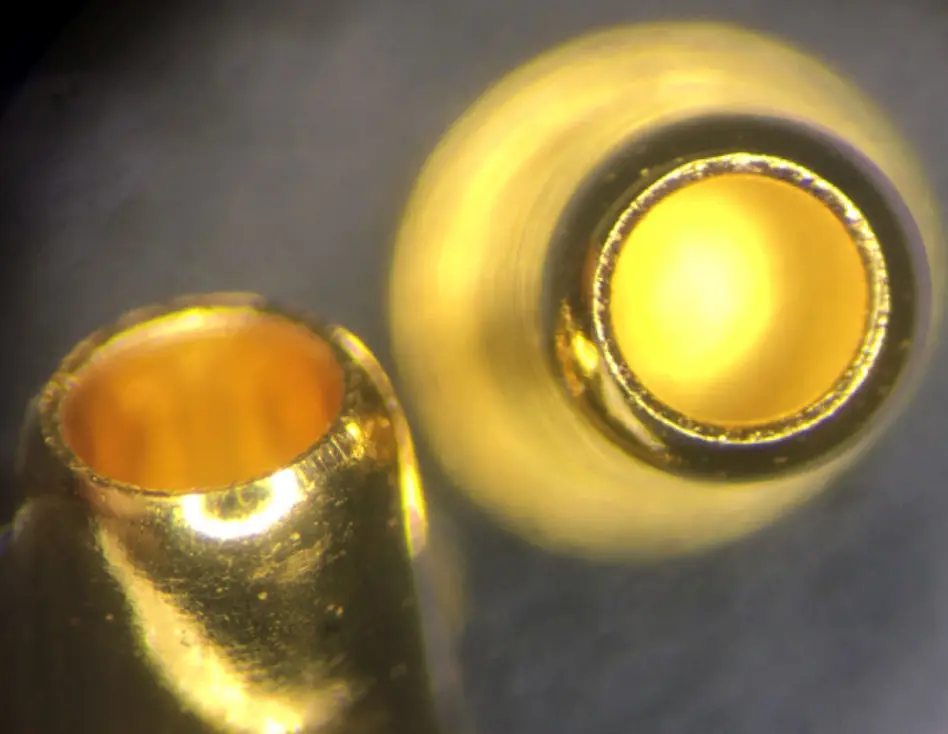

Vacuum blind hole plating technology is known for its excellent performance and can accurately plate a layer of gold inside and outside extremely fine blind holes. This advanced electroplating process not only ensures the overall beauty of the metal surface, but also provides excellent corrosion and wear resistance. Every detail, whether inside or outside the hole, shows a golden and shiny color, and there will be no peeling or gold falling off problems. The precision and stability of this technology ensure the durability and durability of the electroplated layer, meeting a variety of demanding application requirements.

side contact pogo pin sample

Mature design, high-precision processing and advanced vacuum blind hole plating technology are combined to achieve extremely low and stable contact resistance.


side contact pogo pin design

Packaging Methods

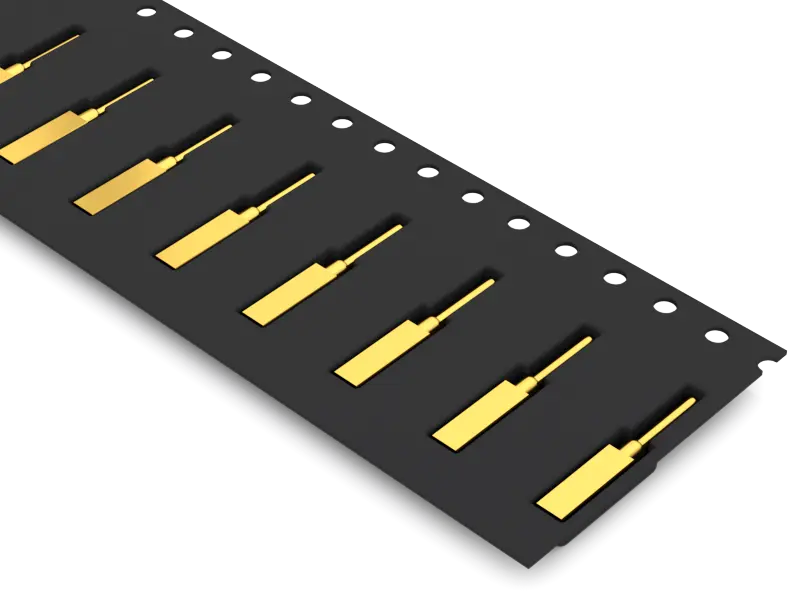

Using SMD vacuum carrier tape packaging, automatic placement and reflow soldering fixation of SMT placement machines can be realized.
Using SMD vacuum carrier tape packaging, automatic placement and reflow soldering fixation of SMT placement machines can be realized.

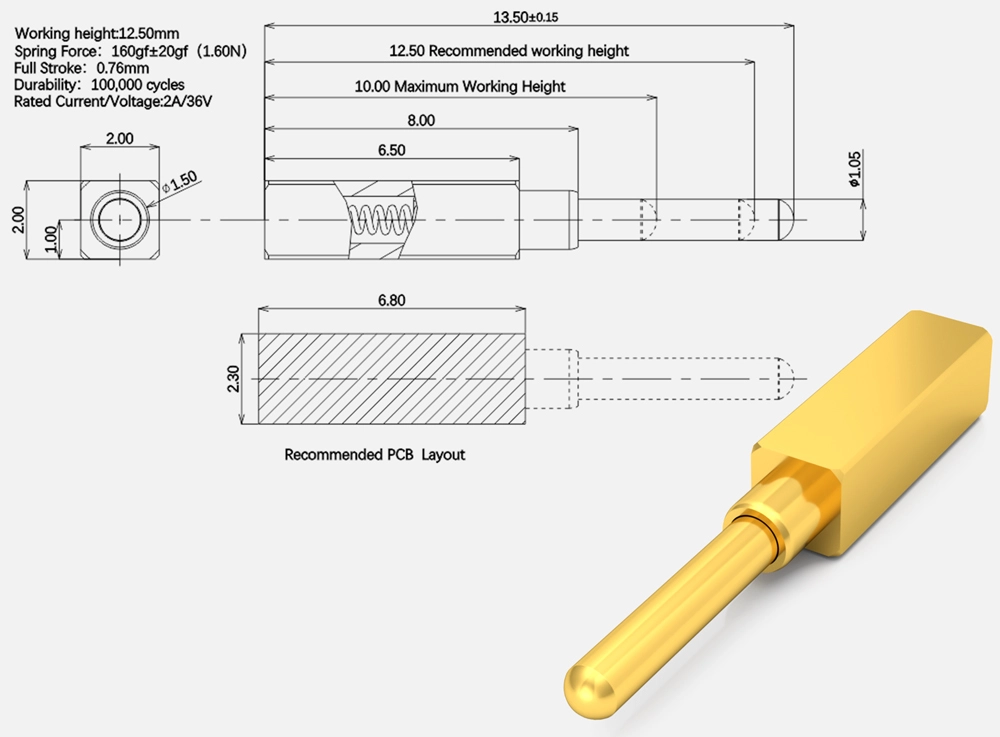

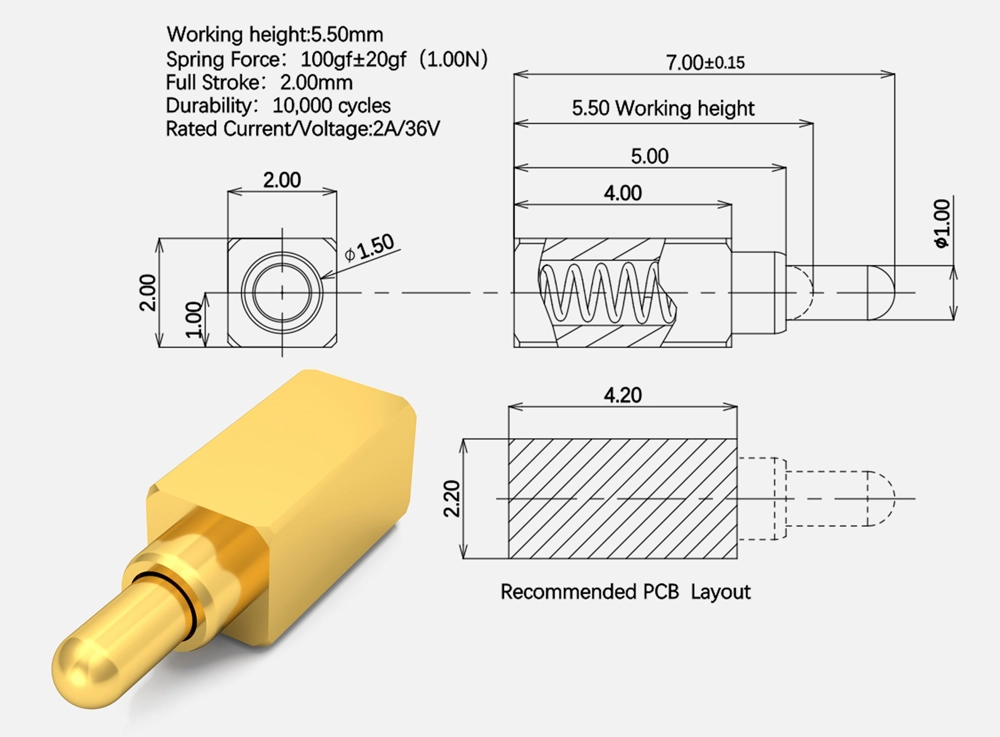

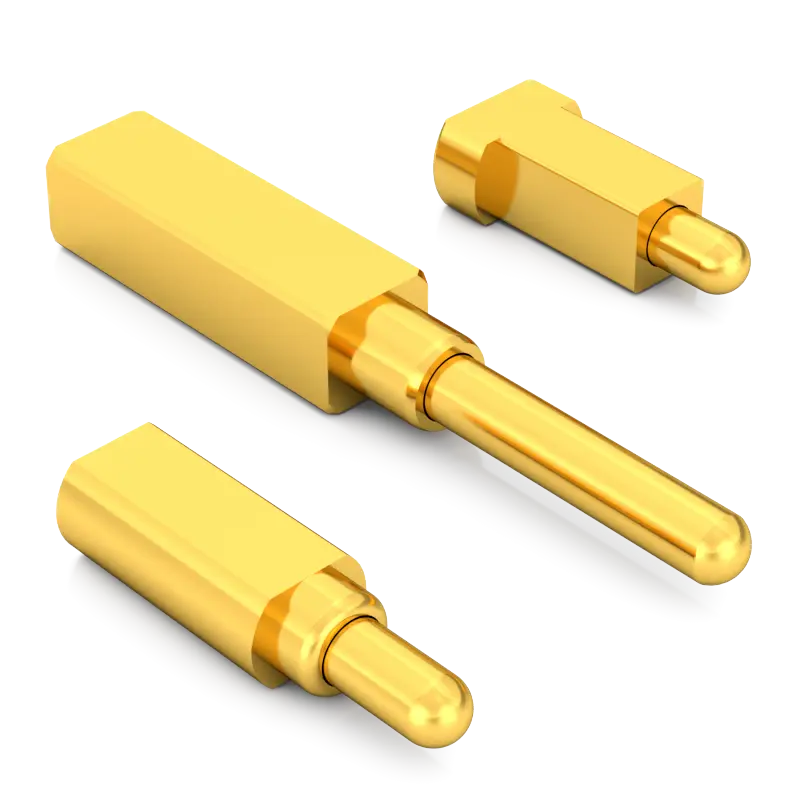

Standard Product

standard product of side contact pogo pin manufacturer
standard product side contact pogo pins

Technical Parameters of Side Contact Pogo Pin

ItemsDetails
Material● Plunger:  Lead-Free Copper Alloy
● Body: Lead-Free Copper Alloy
● Spring: Stainless Steel
●SolidPin: Lead-Free Copper Alloy
Main Technical Parameters● Standard state:
● Operating temperature: -40~+120°C(Standard)
● Operating humidity: 20-85%RH
● Storage temperature: -10~+50°C
● Storage humidity: 20-85%RH
● Rating voltage: 36V AC/DC(Standard)
● Rating current: 2A/Pin Continuous(Standard)
● Contact resistance: 30 mΩ Max.(Standard)
● Withstanding voltage: 250V AC ,1 Minute
● Insulation resistance: 500 MΩ Min.
● Durability:10,000 Cycle(Standard)
● Working Spring Force:100~180gf(Standard)
Electroplating● Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm
● Body: Ni Plating 1.4μm, Gold Plating 0.10μm
● SolidPin: Ni Plating 1.4μm, Gold Plating 0.10μm
Contact Type● Vertical Contact Type
Installation Method● SMT automatic placement machine+Reflow soldering
● Plugin machine + Wave soldering
Environmental Protection Standard● Comply with EU RoHS and Reach standards


Selection Guide of Side Contact Pogo Pin

Please Note: Please refer to the operation manual for instructions and precautions


SNProduct ImageFull StrokeInitial HeightWorking HeightCatalog Download
1

Side Contact Pogo Pins

1.30~5.504.50~15.003.20~14.00Side Contact Pogo Pins
